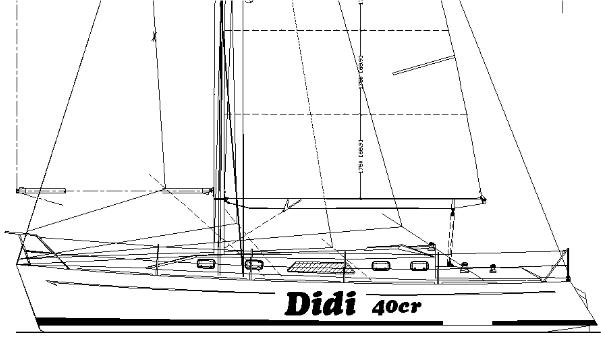

Didi 40cr

Didi 38 radius chine plywood boat plans


Didi 40cr radius chine plywood boat plans



Didi 40cr radius chine plywood boat plans

Karakteristikler

LOA 12.07m (39'7")

LWL 10,33m (33'10")

Beam 3,40m (11'2")

Draft 1.60m to 2,25m (5'3" to 7'4")

Displ to DWL 4750kg (10470lb)

Displ IMS trim 4000kg (8816lb)

Ballast 2000kg (4408lb)

Waterplane area 18.56sq.m (200sq.ft)

Immersion rate 190kg/cm (1064lb/inch)

Wetted surface 27.2sq.m (293sq.ft)

Sail area (main + 100% fore triangle) 66.6sq.m (717sq.ft)

Sail Area/Wetted Surface 2.45

Sail Area/Displ 23.8

Displ/length 120

Prismatic coef .56

Block coef .44

Fineness coef .69

Righting Moment @ 30 deg 3303kgm (23890ft.lb)

Righting Moment @ 60 deg 4856kgm (35124ft.lb)

Righting Moment @ 90 deg 3342kgm (24172ft.lb)

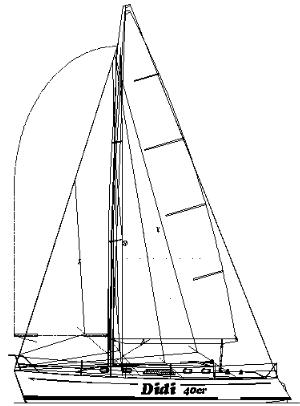

I 14,35m (47'1")

J 4,10m (13'5")

P 14,30m (46'11")

E 5,35m (13'3")

Mainsail (excl roach) 38,28sq.m (412sq.ft)

Foretriangle 28,30sq.m (305sq.ft)

150% Genoa 43,85sq.m (472sq.ft)

Powering 15-25hp diesel

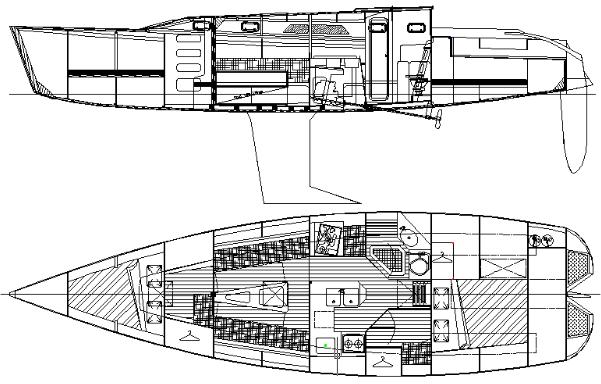

Headroom aft 1.9m (6'3")

Headroom at mast 1.8m (5'11")

Fuel 190 litres (52 US gals)

Water 600 litres (165 US gals)
