Dix 57 Radius chine steel sailboat

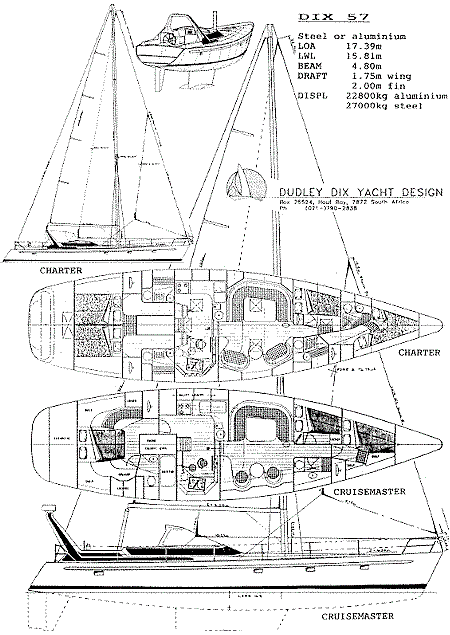

Dix 57 radius chine steel or aluminum sailboat



Dix 57 radius chine steel or aluminum sailboat



Karakteristikler

LOD 17.39m (57'0") LWL 15.81m (51'10") Beam 4.80m (15'9") Draft 1.75m or 2.00m (5'9" or 6'7")
Displacement 25700kg (56643lb) Ballast 7500kg (16530lb) Area Waterplane 45.93sq.m (494sq.ft) Immersion Rate 470kg/cm (2631lb/inch)
Wetted Surface 75.94sq.m (817sq.ft) Fineness Coef 0.68 Block Coef 0.43 Prismatic Coef 0.58
Displacement/Length 181 Sail Area (Main + Fore-triangle) 144.8sq.m (1559sq.ft) Sail Area/Wetted Surface1.91 Sail Area/Displ 16.8
Righting Moment @ 30 deg 19238 kgm (139144ft.lb) Righting Moment @ 60 deg 24797 kgm (179350ft.lb) Righting Moment @ 90 deg 17090 kgm (123608ft.lb) Powering 90hp inboard diesel
