Dix 64

Dix 64 Multi-chine steel boat plans

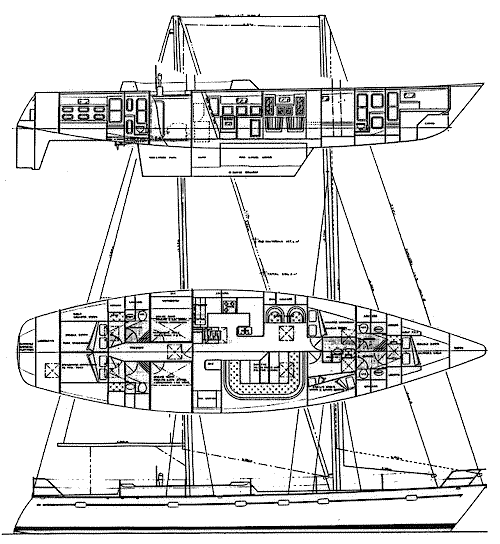

Dix 64 drawings

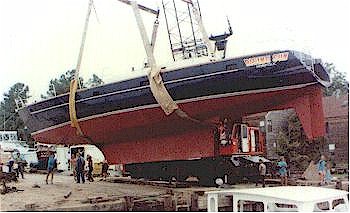

Dix 64 "Rising Sun" on launch day



Karakteristikler

LOD 19.50m (64'0") LWL 17.20m (56'5") Beam 5.20m (17'1") Draft 2.05m (6'9")
Displacement 33250kg (73283lb) Ballast 10250kg (22591lb) Area Waterplane 53.2sq.m (572sq.ft) Immersion Rate 545kg/cm (3051lb/inch)
Wetted Surface 82.02sq.m (883sq.ft) Fineness Coef 0.68 Block Coef 0.42 Prismatic Coef 0.57
Displacement/Length 182 Sail Area (working)) 168.2sq.m (1810sq.ft) Sail Area/Wetted Surface 2.05 Sail Area/Displ 16.4
Righting Moment @ 30 deg 27634 kgm (199877ft.lb) Righting Moment @ 60 deg 34489 kgm (249459ft.lb) Righting Moment @ 90 deg 25686 kgm (185787ft.lb) Powering 2x75hp inboard diesels
