Karakteristikler
|
LOA 9.60m (31'6") |
LWL 8.40m (27'7") |
Beam 3.25m (10'8") |
Draft 1.95m (6'5") |
|
Displ sailing trim 3160kg (6965lb) |
Displ IMS trim 2300kg (5070lb) |
Ballast 1150kg (2535lb) |
Waterplane area 14.35sq.m (154sq.ft) |
|
Immersion rate 147kg/cm (823lb/inch) |
Wetted surface 20.0sq.m (215sq.ft) |

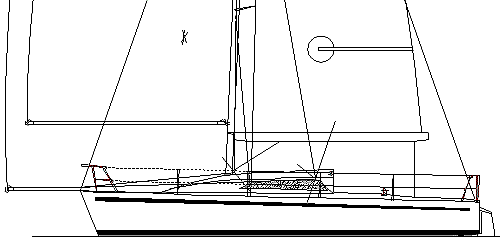

Sail area (triangles only) 46.8sq.m (504sq.ft) |
Sail Area/Wetted Surface 2.34 |
|
Sail Area/Displ 22.0 |
Displ/length 149 |
Prismatic coef .55 |
Block coef .41 |
|
Fineness coef .68 |
Righting Moment @ 30 deg 1783kgm (12896ft.lb) |
Righting Moment @ 60 deg 2096kgm (15160ft.lb) |
Righting Moment @ 90 deg 1338kgm (9678ft.lb) |
|

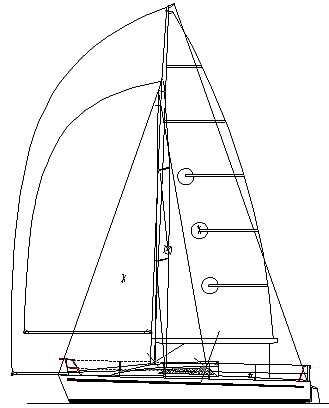

I 11.40m (37'5") |
J 3.50m (11.6") |
P 12.60m (41'4") |
E 4.50m (14'9") |
|
Mainsail (excl roach) 26.8sq.m (288sq.ft) |
Foretriangle 20.0sq.m (215sq.ft) |
150% Genoa 30.0sq.m (323sq.ft) |
Powering 10hp diesel |
|
Headroom 1.65m (5' 5") |
