Vickers 45

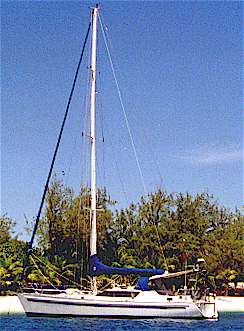

"Tantalus" Vickers 45 AC radius chine steel boat plans

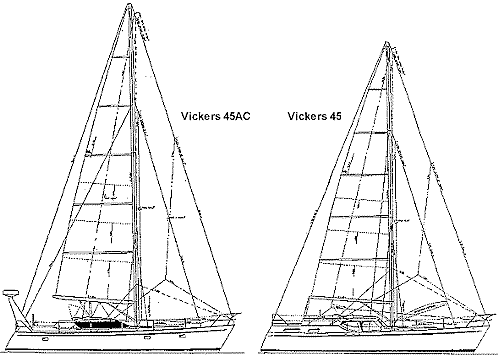

Vickers 45 sail plans

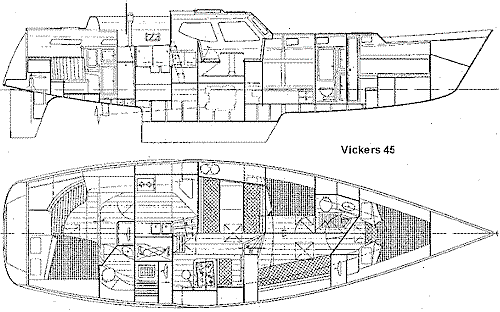

Vickers 45 accommodation

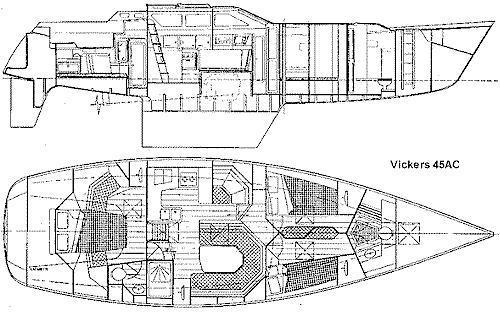

Vickers 45AC accommodation

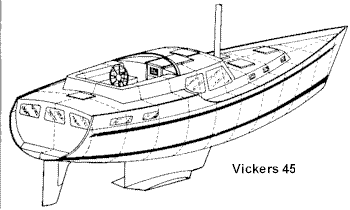

3D of Vickers 45

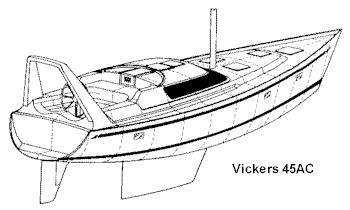

3D of Vickers 45AC



Karakteristikler

LOA - 13.85m [45'5"] LWL 12.30m [40'4"] Beam 4.20m [13'9"] Draft 1.50m to 1.90m [4'11" to 6'3"]
Displacement
Steel 15400kg [33942lb]
GRP 13500kg [29754lb]
Ballast
Steel 4000kg [8816lb]
GRP 5250kg [11571lb]
Area Waterplane 31.80sq.m [342sq.ft] Immersion Rate 326kg/cm [1825lb/in]
Wetted Surface - varies with keel choice - approx
49.50sq.m [533sq.ft]
Fineness Coef
Steel 0.67
GRP 0.68
Block Coef
Steel 0.40
GRP 0.41
Prismatic Coef
Steel 0.57
GRP 0.58
Displacement/Length
Steel 231
GRP 202
Sail Area (Main + Fore-triangle)
Standard rig 88.1sq.m [948sq.ft]
AC rig - 100sq.m [1076sq.ft]
Powering 60-80hp diesel
